Defibrilatoare

Defibrilator model DEFI 8, 9 produs de firma Meditech

Caracteristici principale

Parametri standard

ECG, PR, Defibrilator pentru DEFI 8

ECG, PR, RESP, SpO2, TEMP, NIBP, Defibrilator pentru DEFI 9

Dimensiuni: L320xW205xH410
Greutate: 9,8 Kg
Tip defibrilare: manual, sincronizat, A sincronizat
Forme de unda iesire: tehnologie monofonica (optional bifazica)

Acuratetea energiei: < + 1%
Selectia energiei: 0，3，5，7，10，20,30，50,100,200,300,360 joule(nominal la rezistenta 50)
Timp de incarcare: maxim 8 secunde la 360 Joule

Standard Adult/Pediatric Paddles
Reusable external adult paddles (pediatric paddles integrated)

Ecran TFT 7 inch( 17,78 cm)

ECG derivatii: I, II, III, aVR, aVL, aVF, V1- V6
Domeniu puls: 0 - 300 bpm cu acuratete de ± 2 bpm
NIBP ( DEFI 9): metoda oscilometrica
Mod de lucru : manual / automat
Masura adult : 10 – 250 mmHg
Pediatric : 10 – 200 mmHg
Nou nascuti : 10 – 135 mmHg

Temperatura ( DEFI 9) 20 - 45˚C

SpO2( DEFI 9) afiseaza valoarea SpO2, histograma puls, forma de undă, puls

Tensiune de alimentare : 110/220 Vac, 12 Vcc auto
Baterie interna lithium
Timp de incarcare la capacitate maxima 4 ore
Indicator led rosu baterie descarcata

Battery Capacity
100% of the battery will provide 120 mins of monitoring and 30 discharges at 360 joules.

Display

• LED Dimensions 7’diagonal {155mm*88mm}
• Type High resolution true-color graphic LED
• Resolution 480X234

ECG
ECG lead: I, II, III, AVR, AVL, AVF, V1?V6, GND
S-T segment analysis: -2.0?2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against eletrosurgical interfere and defibrillation

Respiration
Measurement method: Thoracic impedance

NIBP
Working mode: Manual/Automatic/stat(5 minutes)
Method: Automatic oscillation
Cuff type: Standard Adult; optional Pediatric/Neonatal

Temperature
Measurement range 20~45°C
Resolution 0.1°C

Pulse Oximetry (spO2)
Display: spo2 value, pulse histongram, waveform, Pulse
Range: 0~99%for adult, pediatric and neonatal patients
Probe: standard adult finger clip
Optional pediatric Y-type clip and neonatal wrap

Pulse range
Pulse range: 0-255bpm

Optional

Imprimanta termica

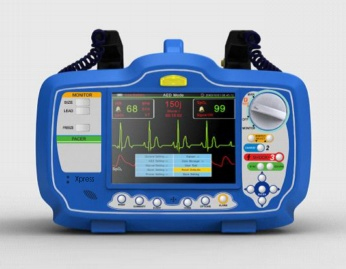

DEFI Xpress

Caracteristici

Ecran : 7 inch ( 17,78 cm)
Afiseaza : puls , alarma ON/OFF , SpO2
Forme de unda defibrilator : bifazic
Timp de incarcare : mai putin de 7 secunde cu o baterie noua
Este afisata energia selectata si energia eliberata
Impedanta electrodului de masura : 0 – 250 Ohmi

ECG : conectare pacient la cablu cu 3 fire sau 5 fire
derivatii : I , II , III , aVR , aVL , aVF , V1- V6
afisare ECG marime : 0,25 ; 0,5 ; 1; 1,5 ; 2 ; 4 cm/mV

Puls : 20 – 300bpm
Baterie : 12V NI-MH

SpO2 modul ( optional)
Domeniu de masura : 30 – 100% ±2% intre 80 -90 % altele ±5%
Inregistrare : hartie termica 50 mm
Modul AED : modul autoanaliza si incarcare programabila a nivelului de energie
Ritmuri de soc : fibrilație ventriculară cu amplitudine> = 200uV, tahicardie ventriculară cu rate> = 140bpm, precum și durata valurilor complex QRS> = 140ms.

Selectie energie : 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules

Output Energy Accuracy

+/- 10% or 1J (whichever is greater) at 50 ohms
+/- 15% or 1J (whichever is greater) at 25 to 100 ohms

Energy Select

External: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 J.

Charge Time

<12 seconds @ 360 J (with a Ni-MH 12 volt - MEDITECH battery after
15discharges).
< 15 seconds @ 360 J (no battery, 90% AC mains voltage)
Charge Indicator: Audible and graphic.

Output

Adult paddles, pediatric adapter and multipurpose hands-free adapter available.
Synchronizer: Delivers energy within 60 msec.
Disarm: Front panel switch.
Monitor/Display

Input

3-lead, 5-lead, patient cable,
Size: 7 inches (16.5 cm) diagonal, non-fade.
Type: color (TFT)
Display Resolution: 800 x 600 pixels.
Sweep Speed: 12.5mm/s,25mm/s,50mm/s
Lead Selections: I, II, III, AVR, AVL, AVF, V.
Frequency Response: (User-selectable).
0.7 to 20 Hz operation mode
0.3 to 40 Hz Monitoring mode
0.05 to 150 Hz Analysis mode
0.5 to 30 Hz AED mode
Common Mode Rejection:>=60dB
Heart Rate Meter: 20 to 300 BPM.
Heart Rate Alarms: User-selectable.
Size: 0.125, 0.25, 0.5, 1, 2, 4 cm/mv and auto-ranging.
ECG Output: 1 V/mV.
Heart Rate Response to Irregular Rhythm: (AAMI EC13-1992,
section 4.1.2.1.e.)
Alarms

Heart Rate, SpO2 Alarm

Audible: 5 pulse, 800 tone, with a PW of 150 msec, a PRI
of 225 msec, and a repetition interval of 10 seconds.
Visual: Heart Rate Alarm causes the displayed heart rate to
flash at 2 Hz. This display is located at the top of the display
and is 0.4" high and 0.28 to 0.840" wide depending on num-
ber of digits in the heart rate. Color is amber, black, white, or
whatever the color the display text is.

Lead Fault Alarm

Audible: 3 pulse, 500 Hz, triplet tone with a PW of 200
msec, a PRI of 310 msec. When the HR alarm is set or the
pacer is on, the lead fault tone repeats at a repetition interval
of 20 seconds.
Visual: Lead Fault condition causes a ”LEAD FAULT”
message to be displayed on the trace along with a dashed
line the width of the trace. The text is 0.18" high and is the
color of the display text. The dashed line is 5" long, the
width of the display. The signal is not modulated.

Physiological Alarms (Spo2)

Audible: See Heart Rate Alarm
Visual: Physiological alarms cause the displayed parameter
to flash at 2 Hz. Color is amber, white or the same as the
display colored text.
Mute Duration: 90 seconds.
Recorder
Type: High-resolution thermal array.
Annotation: Time, date, ECG lead, ECG gain, heart rate,
defibrillation and treatment summary ACLS events.
Paper Width: 50 mm.
Paper Speed: 25 mm/sec, 50 mm/sec, 12 Lead, 50 mm/sec
Delay: 6 seconds.

Frequency Response

Automatically set to monitor's frequency response.
Battery
High Capacity Type: Ni-MH 12V volt - MEDITECH
Up to 4 hours ECG monitoring or 110 full-energy dis-
charges or 3 hours combined ECG, Spo2 and monitor-
ing
Proper battery care is required to maintain maximum avail-
able capacity.

Low Battery Indicator

Flashing low battery icon on display and flashing LED on front panel..
Recharge Rate: 80% in 7.5 hours. 100% in 9 hours.
General
Weight: 10 pounds (4.95 kg) (basic configuration).
Size: 13 x 12.5 x 5.3 inches (33 x 31.8 x 13.5 cm).

Operating

Temperature*: 0 to 45° C
Humidity* (NC): 15 to 95% RH (30 to 90% with CO2
probe)
Vibration*: MIL-STD 810E
Shock / Drop*: MIL-STD 810E
Altitude: Up to 4572 M (15,000 feet)

Transport and Storage

Temperature: -30 to 70°C (-20 to 70°C with CO2 probe)
Humidity: 15 to 95% RH (non-condensing)
Atmospheric pressure: 860 to 1060 hPa
Shock/vibration: ISTA 1A

Enclosure Protection*

Solid Foreign Object: IEC 529, IP2X
Water: IEC 529, IPX4.
l All tests performed per AAMI DF-2 Defibrillation Standard.

Operating Power

Ni-MH 12 volt – MEDITECH
