Spirometre

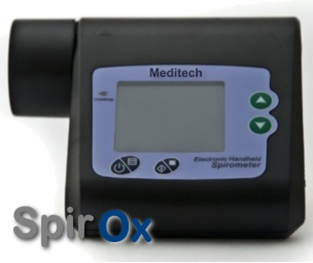

Spirometru SpirOx
Caracteristici
- Display color TFT
- Masoara FVC , PEF, FEV1 , etc. si parametri sincron
- Varful fluxului de expirare (PEF), 25% fluxu din FVC (FEF25), 75% flux din FVC (FEF75) si debit mediu între 25% și 75% din FVC (FEF2575)
- Suport pentru diagnoza volum si flux cu afisarea graficului pe display
- Furnizeaza masuratori repetate si memoreaza datele corelative
- Comunicatie cu calculatorul PC prin cablul USB sau Bluetooth
- Baterie lithiu inclusa cu afisarea starii pe display
- Trecere automata in standby atunci cand nu se foloseste mai mult de 1 minut
- Volum maxim 10L
- Domeniu flux 2L/S si 16L/S
- Acuratetea volumului ±3% sau 50ml
- Acuratetea fluxului ±5% sau 200m
Condiții de operare
- Temperatura: +5°C.+40°C
- Presiune atmosferica : 70kpa.106kpa
- Umiditate relative : ≤80%
Accesorii incluse în pachet
| Piesa de gura | MD.SPX |
| Adaptor | MD20 |
| USB cable | MD.AC/USB-2.1 |
| Software | Spiro Soft |
Garantie 24 luni

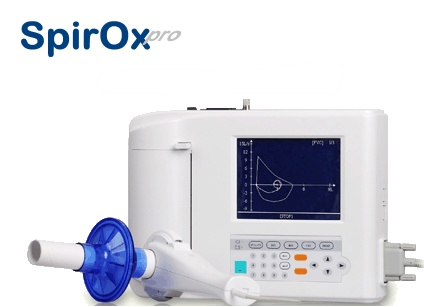

Spirometru SpirOX Pro Meditech
Spirometrul SpirOX Pro poate măsura
- Capacitatea vitala VC
- Forta capacitatii vitale FVC
- Volum maxim ventilator MW
Measurement of breathing time
- VC time 50 seconds,
- FVC measuring time 25 seconds,
- MVV time 12 seconds, in favor of the coordination between patients and the device
- Compact and flexible
Technique specification
Display Screen
Diagonal line 5.7inches
Monochrome LCD
Resolution 320* 240
- Control
Standard: UTILITY KEY, SVC KEY, FVC KEY, MVV KEY, PRINT KEY, 10WORDS KEY, [ ] KEY, KEY, START KEY, STOP KEY, KEY KEY
Light alarm
Measurement means
Flow velocity detection: Pressure gradient pneumatic flow sensor
Capacity detection: Flow velocity integral
- Measuring range
Capacity range: 0L ~ 9L
Flow velocity range: 0 ~ 14L / s
Measurement accuracy
- Capacity:
0L ~ 1.6L ( ± 50ml)
6L ~ 9L ( ± 3% )
Flow rate: 5% or 0.2L / s
- Respiratory rate:
4 / 20 ~ / min ( ± 1 / min)
20 / 60 / min ( error: ± 5% )
- Measuring time limit and degree
Vital capacity: Every 50s, measuring 3
FVC: Per second, 25s, measuring 3
The maximum ventilation volumn: Every 12 seconds, measuring 3
- Paper Recorder
Method: DOT matrix
Level Resolution Ration: 8 d/ mmspeed 25mm/ s
Uprightness Resolution Ration: 8 d/ mm
Wave Channels: 1
Paper Width: 110mm1.97inches
Paper Length: 15m100inches
Formfeed Speed: 12.5, 25 and 50mm/ s± 2
| Patient ID | ID No. . XXXXXXXXXX |
| Gender | Gender . |
| Age | Age . |
| Height | Height . |
| Weight | Weight . |
| Race | Race . |
| Temperature | Temperature . |
| Humidity | Humidity . |
| Atmosphere | Atmosphere . |

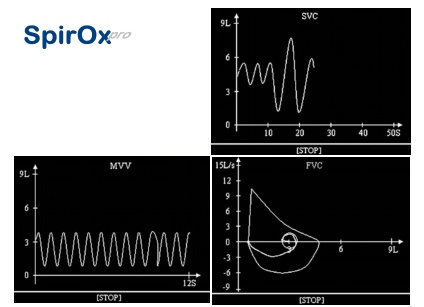

VC
| Test | Vital capacity, Maximum inspiration volume or Maximum exhalation volume | VC |
| Tidal volume | TV | |
| Expiratory reserved volume | ERV | |
| Inspiratory reserved volume | IRV | |
| Inspiratory capacity | IC |
FVC Test
| Forced vital capacity | FVC |
| Forced expiratory volume at 0.5sec | FEV0.5 |
| Forced expiratory volume at 1sec | FEV1.0 |
| Forced expiratory volume at 3sec | FEV3.0 |
| Forced expiratory volume1sec / Forced vital capacity | FEV1.0/G |
| Forced expiratory volume 1sec / vital capacity | FEV1.0%T |
| Forced expiratory volume at 3sec / Forced vital capacity | FEV3.0%G |
| Forced expiratory volume at 3sec / vital capacity | FEV3.0%T |
| Extrapolated volume | Vext |
| Expiratory time | EX Time |
| Maximal mid-expiratory flow | MMF |
| Peak expiratory flow | PEF |
| Mid(forced)-expiratory flow at 75% | MEF75 |
| Mid(forced)-expiratory flow at 50% | MEF50 |
| Mid(forced)-expiratory flow at 25% | MEF25 |
| Forced inspiratory vital capacity | FIVC |
| Forced inspiratory volume at 0.5sec | FIV0.5 |
| Forced inspiratory volume at 1.0sec | FIV1.0 |
| Ratio of FIV1.0divided by FIVC | FIV1.0/FVC |
| Ratio of FIV1.0divided by FVC | FIV1.0/FIVC |
| Peak inspiratory flow | PIF |
| Inspiratory flow at 50% | MIF50% |
MVV Test
| Maximum voluntary ventilation | MVV |
| Respiration rate | RR |
| Tidal volume | TV |
Termen de garantie 2 ani .
