Monitoare pacient

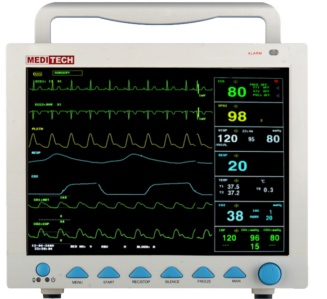

MD 9000s
Caracteristici
- Display color TFT 12,1 inch ( 30,73 cm)
- Greutate mica , compact si portabil ECG , SpO2 , NIBP , RESP , 2-TEMP , PR = parametri standard si 2-IBP , ET CO2 , imprimanta termica optional.
- Baterie interna litiu reincarcabila.
- Afiseaza 7 forme de unda pe display
- Pot fi revazute 480 evenimente de alarma pentru toti parametrii
- Revederea tuturor formelor de unda in ultimile 72 ore
- 500 masuratori NIBP pot fi stocate si revazute
- Culoarea datelor si formelor de unda pot fi ajustate
- Analiza aritmiei si a segmentului S-T
- Potrivit pentru adulti , copii si nou nascuti.
ECG
5-lead or 3-lead selectable
| Input: 5-lead | RA; LA; RL; LL; V or R; L; N; F; C |
| Lead selection | I; II; III; avR; avL; avF; V |
| Gain selection | x0.25; x0.5; x1; x2 |
| Sweep speed | 12.5mm/s, 25mm/s, 50mm/s |
| Accuracy | ±1bpm or ±1%, whichever is greater |
| Protection | Withstand 4000VAC/50Hz voltage |
in isolation against electrosurgical interference and defibrillation
| Calibration signal | 1mV±5% |
| Operation modes | Diagnostic, Monitor, Surgery |
| Alarm range: Adult | 15-300bpm |
| Pediatric/Neonatal | 15-350bpm |
| S-T detectie | DA |
| Alarm range | 2.0mV~2.0mV |
| Arrhythmia analysis | DA |
| Alarm | DA , audibile si vizuale |
NIBP
| Method | Oscillometry |
| Operation modes | Manual/Automatic/STAT |
| Measurement unit | mmHg/KPa selectable |
| Measurement types | Systolic, Diastolic, Mean |
| Measurement range | Adult: 10-270mmHg |
| Protectie depasire presiune | DA |
| Resolution | 1mmHg |
| Accuracy | Mean error and standard deviation per ANSI/AAMI SP-10 |
| Alarm | Systolic, Diastolic, Mean |
SpO2
| Measurement range | 0-100% |
| Accuracy | ±2digit (70~100%);0~69% unspecified |
| Alarm range | 0-100% |
Respiration
| Method | RA-All impedance |
| Operation modes | Manual/Automatic/STAT |
| Measurement unit | mmHg/KPa selectable |
| Measurement types | Systolic, Diastolic, Mean |
| Measurement range | Adult: 0-270rpm, |
Pediatric& neonatal: 0-150rpm
Temperatură
| Resolution | 0.1℃ |
| Channel | Dual-channel |
| Alarm range | 0-50℃ |

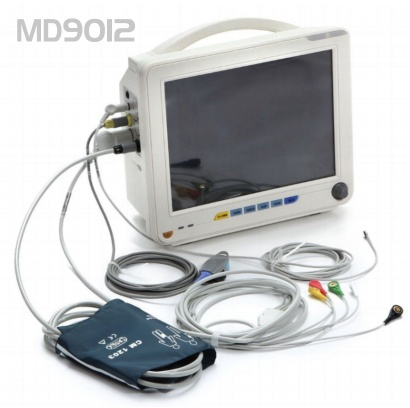

Monitor MD 9012
Caracteristici principale
- Ecran color TFT 12,1 inch ( 30,73 cm)
- Afiseaza 6 forme de unda pe ecran
- Analiza in timp real a aritmiei si a segmentului S-T
- Parametri standard : ECG , SpO2 , NIBP , RESP , PR , TEMP optional IBP , ECTO2 , imprimanta termica , calculul dozei de medicament și OxyCRG
- Maxi m 96 ore trend grafic și tabel, cu stocare de date
- LAN sau conexiune de rețea fără fir ca sistem central de monitorizare;
- Protectie impotriva frecventelor inalte
ECG
Lead type: 5-lead
Input: 5-lead: RA; LA; RL; LL; V or R; L; N; F; C
Lead selection: I; II; III; avR; avL; avF; V
Accuracy: ± 1bpm or ± 1%, whichever is greaterSweep speed: 12.5mm/s, 25mm/s, 50mm/s
Protection: Withstand 4000VAC/50Hz voltage in isolation against electrosurgical and defibrillation
S-T detection: YES, Arrhythmia analysis: YES
Alarm: YES, audible and visual alarm, alarm events recallable
Pulse Oximetry
SPO2 Range: 1% to 99%
Resolution: 1%
Accuracy: 70% to 99% range: ±2%;
1% to 69% range: ±5%;
Method: Dual wavelength LED
NIBP (Non-invasive Blood Pressure)
Technique: Oscillometric during inflation
Range: Adult/Pediatric: 40 to 240 mmHg
Neonate: 10 to 150 mmHg
Measurement Cycle: < 40 sec. typical
Automatic Measurement
Cycles (Selectable): 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr
STAT Mode: 5 minutes of continuous readings
Max. Allowable Cuff
Pressure: Adult: 300mmHg
Pediatric: 240 mmHg;
Neonate: 150 mmHg
Resolution: 1 mmHg
Transducer Accuracy: ±2 mmHg or ±2% of reading,
Heart (Pulse) Rate
Range: 30 to 250 bpm
Accuracy: ±2 bpm or ±3%, whichever is greater
Capnography (CO2)
Units: mmHg; kPa; %
Method: Non-dispersive infrared; auto calibrating
N2O Compensation: Manual; On/Off, user selectable
Range: 0 to 114 mmHg; 0 to 15%
Flow, Sample Rate: Sidestream; 50 ml/min
Accuracy: ±2 mmHg or 5% of reading
Respiration Rate
Rate: 2 to 120 bpm (CO2)
Resolution: 1 breath/min
Trends
Memory: 96 hours with a NIBP reading every 5 minutes
Display: tabular, graphical
Interface & Display
Keys: 9; membrane activated
Rotary Knob: Push and rotate; 24 steps/turn
Screen: 12 inch active color TFT
Resolution: 800 x 600 pixels
Wave forms: 8 maximum
Waveform Types: I; II; III; avR; avL; avF; V ,Respiration ; Pleth;
Languages: English
Printer (optional)
Type: Thermal printer
Paper Speed: 6.25, 12.5, 25 mm/sec
Power Requirements
Voltage: 110-240 V AC; 50 Hz
Power Consumption: 8 Watts, typical
Battery: 1 sealed lithium battery
Battery Life: 8 hours, typical
Recharge Time: 4 hours, typical
Environmental
Operating Temperature: 59° to 95°F (15° to 35°C)
Storage Temperature: 23° to 122°F (-5° to 50°C)
Operating Humidity: 15% to 90%, non-condensing

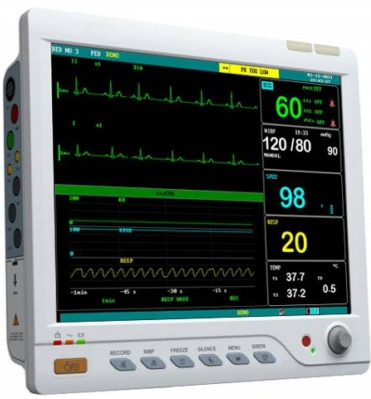

Monitor 15 inch MD 9015T și MD 9015
Caracteristici principale
- Ecran color TFT de inalta rezolutie 1024x678 diagonala 15 inch ( 38,1 cm)
- MD 9015T ecran cu touch screen
- Alarma audio –video
- 192 ore grafice , forme de unda , masuratori segment S-T , analizeaza aritmia ( 720 ore pentru MD 9015)
- 1000 masuratori NIBP ( 10000 pentru MD 9015)
- Alarme multi nivele cu ajustare volum
- Cu stimulator analiza poate fi utilizat simultan cu pacemaker, defibrillator
- Functii management informatii utilizator
- Control de la distanta cu telecomanda infrarosu
- Poate masura 2 temperaturi simultan : temperatura si diferenta de temperatura dintre suprafata ecranului si corpului.
- 9 Parametri : ECG , NIBP , RESP , SpO2 , PR , TEMP , CO2 , dual IBP , IoC
- Suporta interfata externa ETCO2, poate fi conectat la modulul de CO2, pentru a facilita nevoile clinice
- Suporta pana la 32 TCP/IP conexiuni retea
- Support pentru retea Wireless , suporta modul extern pentru transmitere
Electrocardiogram (ECG)
| Input mode | Five-lead ECG input / three-lead ECG input |
| Lead selection | I, II, III, aVR, aVL, aVF, V- |
| Gain selection | AUTO,0.25X,0.5X,1X,2X,4X |
| Operating mode | Diagnostic mode, monitoring mode,operation mode |
| Calibration signal | 1mV ±5% |
| Protection | The isolation voltage 4000V, 50/60Hz.Anti-high-frequency interference of electric knife. Anti-defibrillation protection. |
| Pacemaker at the same time use | Support |
| Electrode offinstructions | Each electrode (RL excluded) |
| Scanning speed | 12.5mm/s, 25 mm/s, 50 mm/s |
| Common mode rejection ratio | ≥90dB |
| Input impedance | ≥5.0MΩ |
Heartrate (HR)
| Measuring range | Adult 30 ~ 300bpm, newborns 30 to 350bpm |
| Resolution | 1 bpm |
| Accuracy | < ±5bpm |
| Heart ratesensitivity | ≥0.20mVp-p |
| Alarm range | 15 to 350 bpm, upper and lower limits |
| Alarm indication | Audible and visual alarm, display the data and parameters flashing display alarmmessage text prompts, there are three levels of alarm |
ST-segment
| ST-segmentmeasurement range | 2.0～+2.0mV |
| ST-segmentmeasurement accuracy | Within the range of -0.8 ~ +0.8 mV: ±0.02mV or reading ± 10%, |
Whichever is greater;
Other range: undefined
| Resolution | 0.01mV |
| ST-segment update cycle | 10s |
| ST segment alarmrange | 2.0 ~ +2.0 MV, the upper and lower limitscontinuously adjustable |
Arrhythmia analysis
Arrhythmia types 13 kinds of (scalable)
※ ECG
| Overload Protection: 1V load,power frequency AC voltage ofthe differential mode 10s, nodamage | Minimum | V | 1 |
| Breathing, leads off detection and active noise suppression | Have | ||
| DC current of the active lead | Maximum | μA | 0.1 |
QRS detection
QRS amplitude and width of therange - the pulse shown in Figure 6, to meet the requirements of4.2.6
| Amplitude | Range | mV | 0.5~5 |
| Width (adult range of monitors) | Range | ms | 70~120 |
| Width (neonatal / pediatric) | Range | ms | 40~120 |
No response to the following signals
| Amplitude (in addition to thework of the neonatal / pediatricmode) | Maximum | mV | 0.15 |
| The range of 1mV when the width (in addition to the work of theneonatal / pediatric mode) | Maximum | ms | 10 |
| Power frequency voltage tolerance | Minimum | uV | 100 |
Drift tolerance
| Triangle wave amplitude | NA | mV | 4 |
| QRS wave amplitude | NA | mV | 0.5 |
| Width of the QRS complex | NA | ms | 100 |
| QRS did not repeat rate | NA | bpm | 80 |
| Display of heart rate on less than the minimum nominal heart rate | Maximum | bpm | 30 |
| Signal repetition rate = 300bom(adult mode) display the heart | Minimum | bpm | 300 |
| Display heart rate on the signalrepetition rate = 350bom(neonatal / pediatric mode) | Minimum | bpm | 350 |
Alarm system requirements
Alarm limit range
| Adult alarm upper limit | Minimum | bpm | 17~300 |
| Adult alarm lower limit | Minimum | bpm | 15~298 |
| Children / newborn alarm upperlimit | Minimum | bpm | 17~350 |
| Children / newborn alarm lower limit | Minimum | bpm | 15~348 |
