ECG – Medical Electronic

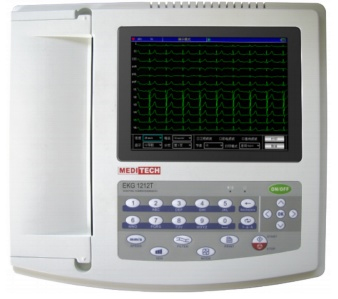

Electrocardiograf 12 canale cu soft autoanaliză, model 1212T, produs de Meditech

Ecran touch screen 8 inch (20,32 cm)
Hartie printer 210 mm
12 canale achizitie simultana
Memorie interna 1000 examinari
Viteza printare 5mm/s, 6,25mm/s, 10mm/s, 12,5mm/s, 25mm/s, 50mm/s.
Mod printare multimod : 12,6+1(rhythm),6 rhythm 12 rhythm 10 rhythm 8 rhythm 6 Manual Freeze etc;
Lungimea undei printate poate fi ajustata
Acumulator inclus 14,8 V/3700 mA
Protectie defibrlatie
Impedanta intrare >= 50MΩ
Protectie defibrilare
Curent scurgere pacient ≤ 10µA
Frecventa raspuns : 0.05Hz~150Hz(-3dB)
CMRR: >60dB, >100dB( Adaugare filtru)
EMG interference filter: 35Hz(-3dB)
Viteza printare 25mm/s, 50mm/s, error:±5%
Parametri masurati: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Contine soft auto-analiza si auto- interpretare Cardiosoft.
Se poate conecta la orice calculator si printa la imprimanta normala.
Afisare simultana 3/6/12 canale.
Mediu temperatura de lucru +5℃~+35℃
Dimensiuni: 340mm(L)*320mm(W)*85mm(H)
Greutate: 3,2 Kg.

Ecran TFT color 5,7 inch ( 14,47 cm)
Mod achizitie : standard 12 canale simultane
Hartie printer ajustabila 216 /210 mm
Cu interpretare , 300 inregistrari ECG digitale
Port USB pentru date iesire
Convertor analog/digital 12 biti
Constanta timp ≥ 5s
Frecventa raspuns : 0,05 Hz – 150Hz
Tensiune calibrare 1mV± 3%
Sensibilitate 2,5 ; 5 ; 10 ; 20 mm/mV
Impedanta intrare ≥ 50 MΩ
Current circuit intrare ≤ 50 µA
Nivel zgomot ≤ 15µVpp
Filtru EMG : 25 Hz/35Hz/45Hz/ inchis
Filtru DFT : 0,05Hz/ 0,1Hz/0,2Hz/0,5Hz
Filtru trecere joase : 150Hz/100Hz/75Hz
Filtru retea : 50Hz/60Hz/ inchis
Viteza printare : 5 mm/s ; 10mm/s ; 12,5mm/s ; 25mm/s ; 50mm/s (±2%)
Amplificare : AGC 2,5mm/mV ; 5 mm/mV ; 10mm/mV ; 20mm/mV ; 10/5mm/mV; 20/10mm/mV
Format inregistrare: 3x4 ; 3x4+1R ; 3x4+3R ; 6x2 ; 6x2+1R ; 12x1 ; 12x1 +1T

intrare ≥ 100KΩ sensibilitate 10mm/mV ±5%
Iesire ≤ 100Ω sensibilitate 1V/mV ±5%
