Ecografe

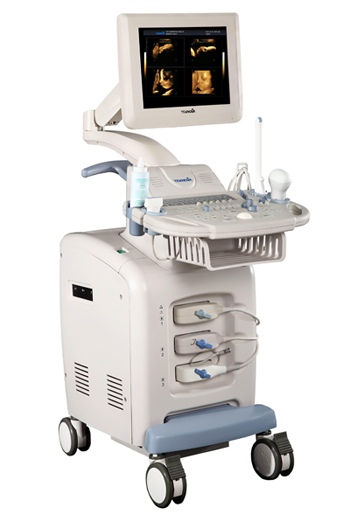

TH-5500 Full-digital Color Doppler Ultrasound Diagnostic System

ecograf doppler color multifunctional

Caracteristici

Aplicatii : abdomen, OB/GYN, parti moi, vase periferice, urology, cardiac,
rectum, pediatric, orthopedic, galactophore, intra-operative ultrasound, ultrasound guided
biopsy, medicina generala

Standard Configuration

TH-5500 main unit
15" high definition non-interlaced LCD monitor, special for medical imaging
3 conectori pentru sonde
Min. 512-frames of Cine Loop
THI (Tissue Harmonic Imaging)
Triplex
SRI (Speckle Reduction Imaging)
One Click Restoration of O/S
160GB HDD pentru memorie permanenta
DVD-R/W
2 porturi USB
DICOM 3.0
Panoramic zoom
CFM (Color Flow Mapping) / PW (Pulse Wave Doppler) / HPRF
CDE (Color Doppler Energy) / Dir. CDE (Directional Color Doppler Energy
Measurement & calculation software packages
SVVR (super volume video recording up to 1 hr)
Electronic convex array transducer: CA3.5MHz/R50 (2.0-6.0MHz)
Electronic linear array transducer: LA7.5MHz/L40 (5.0-10.0MHz)
pachet complet de programe ( optional soft 4D)

Mod imagine

B
B/B
B+M
M
CFM
PW
CDE
CCD
HPRF
Gray scale: 256
Display: 15" high-resolution non-interlaced monitor, special for medical

Frecventa de lucru a sondelor : 2.0 ~ 14MHz

3 conectori pentru sonde

Measurement & Calculation
B-mode: distance, circumference, area, volume, angle, residual urine volume,
histogram, profile
M-mode: distance, time, velocity, heart rate
D-mode: doppler blood flow measurement, velocity, acceleration, pressure
gradient, time, VI, PI, RI, etc

Software packages

GYN uterus, endometrium, ovary, cervix, ovarian follicle
OB GS, CRL, LV, BPD, OFD, HC, TAD, LVW, HW, TCD, IOD, OOD, BD,
APTD, TTD, AC, APD, FTA, HL, ULNA, FL, FIB, CLAV, etc
Cardiac M. Simpson, B-EF、M-EF（Pombo、Gibson、Teichholz）, Diameter
Function, PV flow, AV-Area, B-LV/Ao、M-LV/Ao, MV Regurg, etc
Urology volume of prostate, volume of bladder, volume of urine, volume of
trans zone, HipJ.Angle（hip joint dislocation in neo-natal and babies）、
slice v, etc
Small Parts and Peripheral Vessels
vascular cross-sectional area, heart rate, stroke volume, flow per unit
time, Ejection Time, % stenosis, mean velocity of flow, RI, PI, etc.

Sonde opționale

Electronic convex array transducer CA3.5/R50 (2.0/2.5/3.5/4.0/6.0MHz)
Electronic linear array transducer: LA7.5MHz/L40 (5.0/6.0/7.5/8.0/10.0MHz)
Electronic linear array transducer: LA8.5MHz/L40 (6.5/7.5/8.5/10.0/12.0MHz)
Electronic linear array transducer: LA7.5MHz/L50 (5.0/6.0/7.5/8.5/10.0MHz)
Electronic endocavity transducer: EV6.5MHz/R10 (4.0/5.0/6.5/7.5/8.0MHz)
Electronic micro-convex transducer: MC3.5MHz/R20 (2.0/2.5/3.5/4.0/6.0MHz)
Electronic phased array transducer: P2.5MHz (2.0/2.5/3.5/4.0/6.0MHz)
4D volume transducer : CLA4.5MHz (2.5-6.5MHz)

Accessorii optionale
15" non-interlaced medical CRT color monitor ( 0 Euro)
17” LCD screen ( 350 Euro)
Water-resistant footswitch
Needle-guided bracket for convex transducer
Needle-guided bracket for linear transducer
Needle-guided bracket for endocavity transducer
RTDT (real-time dynamic transfer of images and videos)
SVVR (super volume video recording up to 1 hr)

Altele
Peripheral port: Video output 1
USB port 2
DICOM3.0 1
VGA port 1
S-Video port 1
RS232 1
Print Remote 1
Power supply: 100V - 240V 50/60HZ
Greutate : 70Kg

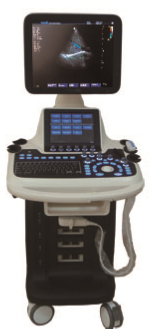

TH-5500 Expert Full-digital Color Doppler Ultrasound Diagnostic System

Caracteristici

Aplicatii : abdomen, cardiologie , OB/GYN, parti moi, vase periferice, urologie
pediatric, orthopedic, intra-operative ultrasound, ultrasound guided biopsy ,medicina generala.

Configurație standard

TH-5500ex unitate centrala
17" LCD monitor special pentru aplicatii medicale( optional 19 inch)
4 conectori pentru sonde
Max. 1024 cadre pentru Cine Loop
CFM( Color Flow Mapping)
Doppler pulsat PW , CDE Color Doppler Energy
Dir.CDE Directional Color Doppler Energy , HPRF
THI ( Tissue Harmonic Imaging )
TDI ( Tissue Doppler Imaging)
CW Doppler continuu
UE modul elastografie (optional)
Triplex
SRI (Speckle Reduction Imaging)
320GB HDD pentru memorie permanenta
DVD-R/W
Touchpad screen ecran tactil (optional)
5 porturi USB
DICOM 3.0
Panoramic zoom
Pachet complet de programe ( optional soft 4 D)
SVVR (super volume video recording up to 1 hr)

Sonde

Electronic endocavity transducer: EV6.5MHz/R10 (4.0-9.0MHz)

Electronic linear array transducer: LA7.5MHz/L40 (5.0/6.0/7.5/8.0/10.0MHz)
Sonda electronic convexa: CA3.5MHz/R50 (2.0-6.0MHz)

Mod imagine

B
B/B
B+M
M
CFM
PW
CDE
CCD
CW
HPRF
Gray scale: 256
Frecventa de lucru a sondelor : 2.0 ~ 14MHz

Masuratori si calcule
B-mode: distance, circumference, area, volume, angle, residual urine volume,histogram, profile
M-mode: distance, time, velocity, heart rate
D-mode: doppler blood flow measurement, velocity, acceleration, pressure
gradient, time, VI, PI, RI, etc

Pachet software

OB GS, CRL, LV, BPD, OFD, HC, TAD, LVW, HW, TCD, IOD, OOD, BD,
APTD, TTD, AC, APD, FTA, HL, ULNA, FL, FIB, CLAV, etc
GYN uterus, endometrium, ovary, cervix, ovarian follicle
Cardiac M. Simpson, B-EF、M-EF（Pombo、Gibson、Teichholz）, Diameter
Function, PV flow, AV-Area, B-LV/Ao、M-LV/Ao, MV Regurg,
TEI Index, Editable Cardiac report, PISA , customized annotation etc
Urology volume of prostate, volume of bladder, volume of urine, volume of
trans zone, HipJ.Angle（hip joint dislocation in neo-natal and babies）、
slice v, etc
Small Parts and Peripheral Vessels
vascular cross-sectional area, heart rate, stroke volume, flow per unit
time, Ejection Time, % stenosis, mean velocity of flow, RI, PI, etc.

Opțional

Electronic linear array transducer: LA7.5MHz/L50 (5.0-10.0MHz)
Electronic linear array transducer: LA7.5MHz/L40 (6-14.0MHz)
Electronic phased array transducer: P2.5MHz (2.0/2.5/3.5/4.0/6.0MHz)
Phased array transducer: PA2.5MHz (1.0-5.0MHz)
Electronic phased array transducer: P2.5MHz (2.0/2.5/3.5/4.0/6.0MHz)
Electronic micro-convex array transducer: MC3.5MHz/R20 (2.0-6.0MHz)
4D Package [Volume transducer CLA4.5MHz (2.5-6.5MHz) + 4D software]
Sonda electronica endocavitara EV6.5MHz/R10 (4.0/5.0/6.5/7.5/8.0MHz

Accessories
Pedala rezistenta la apa pentru functia “freeze”
Ghid punctie pentru sonda convexa
Ghid punctie pentru sonda liniara
Ghid punctie pentru sonda endocavitara
RTDT (real-time dynamic transfer of images and videos)
SVVR (super volume video recording up to 1 hr)

Altele
Peripheral port: Video output
USB port
DICOM 3.0
VGA port
S-Video port
RS232
Print Remote
Tensiune alimentare : 100V - 240V 50/60HZ
Greutate : 70Kg

Garantie : 2 ani

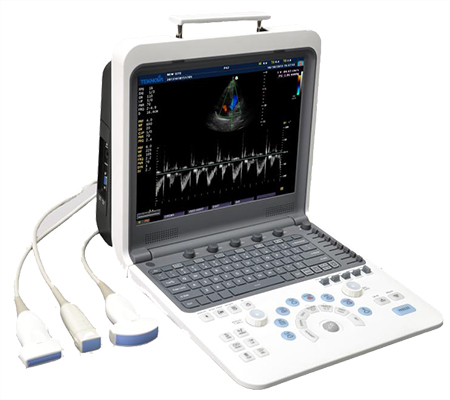

TH-5100 Full-digital Portable Color Doppler Ultrasound Diagnostic System

TH-5100 is a High-end Color Doppler HCU (Hand-Carried Ultrasound). Based on Teknova’s leading digital ultrasound technology, TH-1500 offers superb 2D and premier doppler imaging modes such as CFM, CW, PW, CDE, CCD, HPRF. This flagship HCU can meet strictest requirements from cardiologists and it provides powerful image and data management including 4D imaging.

Features & Advantages

Multi-application: abdomen, cardiology, OB/GYN, small parts, peripheral vessels, urology,
rectum, pediatric, orthopedic, intra-operative ultrasound, ultrasound guided biopsy.
Continuous high-precision DBF
THI (Tissue Harmonic Imaging)
TDI (Tissue Doppler Imaging)
Panoramic zoom
Parallel scanning
PC platform / Windows XP Embedded O/S
Transducer: multi-frequency transducer series
Multi-language Interface: English, French, Spanish and Italian etc
Printing: all PC and video printers supported
3

Standard Configuration

TH-5100 main unit 15" high definition non-interlaced LCD monitor, special for medical imaging DICOM 3.0 Measurement & calculation software packages Electronic convex array transducer: CA3.5MHz/R50 (2.0-6.0MHz)
Electronic linear array transducer: LA7.5MHz/L40 (5.0-10.0MHz) 4D volume transducer : CLA4.5MHz (2.5-6.5MHz)
